泽拓昆仑Klustron VS Oracle TPC-H性能对比
大约 17 分钟
泽拓昆仑Klustron VS Oracle TPC-H性能对比
测试结果总览
通过TPC-H测试工具，分别对Klustron v1.4.1和Oracle v19.14.0.0.0版本进行测试，获取性能结果。
- 数据量为100G时，Klustron总耗时为307.9s，Oracle总耗时为782.8s，Klustron的性能是Oracle的2.5倍。
- 数据量为200G时，Klustron总耗时为1631.57s，Oracle总耗时为2599.11s，Klustron的性能Oracle的1.5倍。
- 数据量为500G时，Klustron总耗时为10197.26s（q21查询异常），Oracle总耗时为5827.13s，Oracle的性能是Klustron的1.7倍。
测试环境
服务器规格配置
共三台机器：192.168.0.17、192.168.0.18、192.168.0.19，每台机器的配置如下：
- 操作系统：CentOS Linux release 8.5.2111
- CPU：AMD Ryzen 9 7950X 16-Core Processor，hread(s) per core: 2，32核
- 内存：128GB
- 磁盘：nvme 1.8T *1
- 网络：Speed: 10000Mb/s
软件版本
| 软件名称 | 软件版本 |
|---|---|
| Klustron | v1.4.1 |
| Oracle | v19.14.0.0.0 |
| TPC-H | v3.0.0 |
集群环境
Klustron
| 节点类型 | IP | PORT |
|---|---|---|
| 计算节点 | 192.168.0.19 | 23001 |
| Storage-shard1-Master | 192.168.0.17 | 33501 |
| Storage-shard2-Master | 192.168.0.18 | 33503 |
| Storage-shard3-Master | 192.168.0.19 | 33505 |
| Cluster_mgr | 192.168.0.17/18/19 | 23501 |
| Metedata_cluster | 192.168.0.17/18/19 | 23301 |
| XPanel | 192.168.0.18 | 10024 |
集群说明：
- 计算节点：部署一个计算节点。
- 存储节点：3个shard，每一个shard为单主，三个shard的单主分别分布在这三台机器上。
- 管理节点和元数据集群：管理集群有三台机器组成，为3个节点，1主两备。
Oracle
| 节点类型 | IP | PORT |
|---|---|---|
| 单节点实例 | 192.168.0.20 | 监听端口1521 |
配置参数
Klustron
计算节点：
alter system set statement_timeout=6000000;
alter system set mysql_read_timeout=1200;
alter system set mysql_write_timeout=1200;
alter system set lock_timeout=1200000;
alter system set log_min_duration_statement=1200000;
alter system set effective_cache_size = '48GB';
alter system set work_mem = '5GB';
alter system set wal_buffers='64MB';
alter system set extension.aggregate_ignore_work_mem=false;
alter system set enable_nestloop=false;
alter system set extension.max_custom_indexscan_parallelism=16;
alter system set extension.custom_hashjoin_parallelism=32;
注意：调整后需重启计算节点。
存储节点：
mysql -h 192.168.0.17 -P 33501 -upgx -ppgx_pwd
mysql -h 192.168.0.18 -P 33503 -upgx -ppgx_pwd
mysql -h 192.168.0.19 -P 33505 -upgx -ppgx_pwd
分别设置如下参数：
set persist innodb_buffer_pool_size=48*1024*1024*1024;
set persist lock_wait_timeout=1200;
set persist innodb_lock_wait_timeout=1200;
set persist fullsync_timeout=1200000;
set persist enable_fullsync=false;
set persist innodb_flush_log_at_trx_commit=2;
set persist sync_binlog=0;
set persist max_binlog_size=1*1024*1024*1024;
Oracle
实例节点执行，设置96G SGA
alter system set sga_max_size=98304M scope=spfile;
alter system set sga_target=98304M scope=spfile;
设置大表开启并行查询
alter table LINEITEM parallel(degree 24);
alter table PART parallel(degree 8);
alter table CUSTOMER parallel(degree 8);
alter table ORDERS parallel(degree 8);
alter table PARTSUPP parallel(degree 8);
测试结果

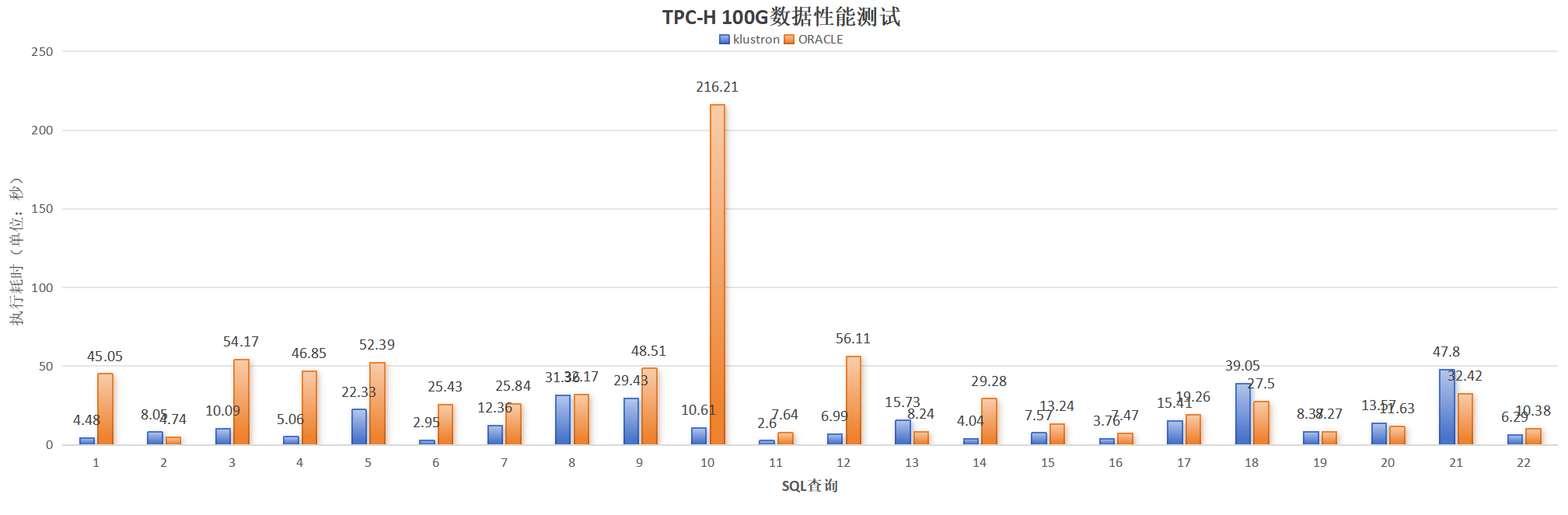

TPC-H-100G
TPC-H 数据量100G，测试结果均为测试两次择优耗时较短的一次，单位：秒。
| QUERY ID | Klustron v1.4.1 | Oracle v19.14.0.0.0 |
|---|---|---|
| Q1 | 4.48 | 45.05 |
| Q2 | 8.05 | 4.74 |
| Q3 | 10.09 | 54.17 |
| Q4 | 5.06 | 46.85 |
| Q5 | 22.33 | 52.39 |
| Q6 | 2.95 | 25.43 |
| Q7 | 12.36 | 25.84 |
| Q8 | 31.36 | 32.17 |
| Q9 | 29.43 | 48.51 |
| Q10 | 10.61 | 216.21 |
| Q11 | 2.6 | 7.64 |
| Q12 | 6.99 | 56.11 |
| Q13 | 15.73 | 8.24 |
| Q14 | 4.04 | 29.28 |
| Q15 | 7.57 | 13.24 |
| Q16 | 3.76 | 7.47 |
| Q17 | 15.41 | 19.26 |
| Q18 | 39.05 | 27.5 |
| Q19 | 8.37 | 8.27 |
| Q20 | 13.57 | 11.63 |
| Q21 | 47.8 | 32.42 |
| Q22 | 6.29 | 10.38 |
| 总耗时 | 307.9 | 782.8 |

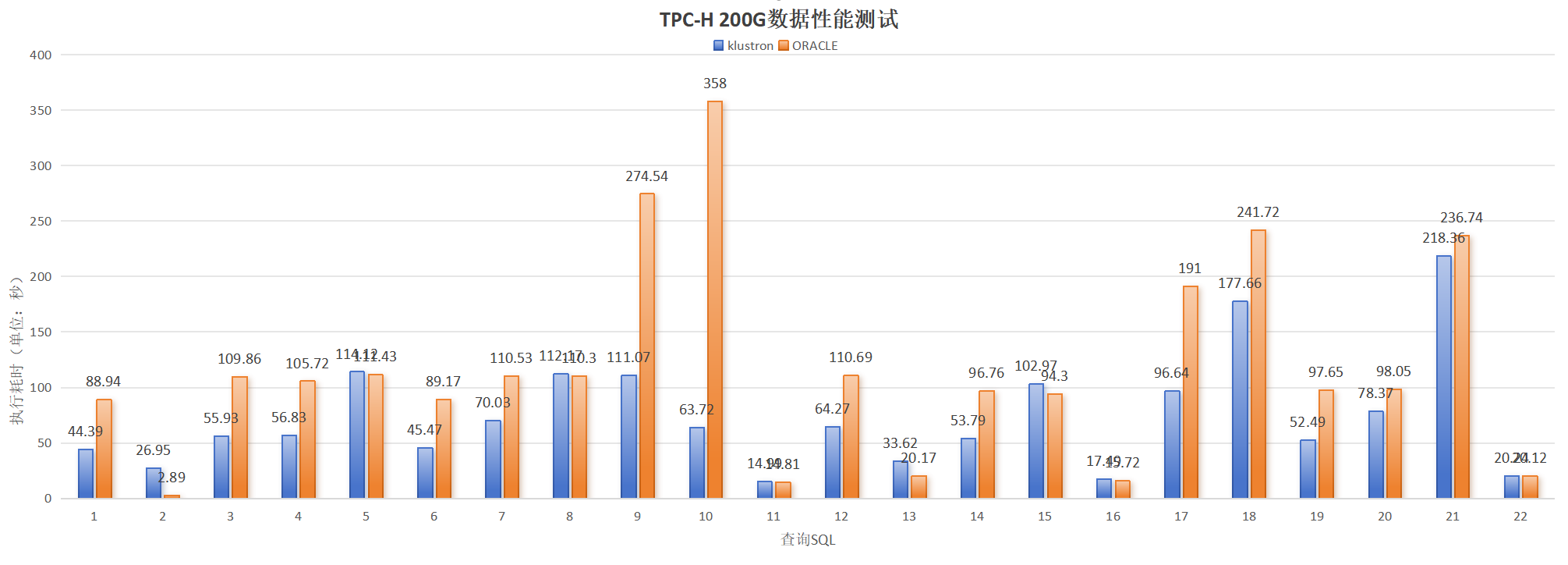

TPC-H-200G
TPC-H 数据量200G，测试结果均为测试两次择优耗时较短的一次，单位：秒。
| QUERY ID | Klustron v1.4.1 | Oracle v19.14.0.0.0 |
|---|---|---|
| Q1 | 44.39 | 88.94 |
| Q2 | 26.95 | 2.89 |
| Q3 | 55.93 | 109.86 |
| Q4 | 56.83 | 105.72 |
| Q5 | 114.12 | 111.43 |
| Q6 | 45.47 | 89.17 |
| Q7 | 70.03 | 110.53 |
| Q8 | 112.17 | 110.3 |
| Q9 | 111.07 | 274.54 |
| Q10 | 63.72 | 358 |
| Q11 | 14.99 | 14.81 |
| Q12 | 64.27 | 110.69 |
| Q13 | 33.62 | 20.17 |
| Q14 | 53.79 | 96.76 |
| Q15 | 102.97 | 94.3 |
| Q16 | 17.49 | 15.72 |
| Q17 | 96.64 | 191 |
| Q18 | 177.66 | 241.72 |
| Q19 | 52.49 | 97.65 |
| Q20 | 78.37 | 98.05 |
| Q21 | 218.36 | 236.74 |
| Q22 | 20.24 | 20.12 |
| 总耗时 | 1631.57 | 2599.11 |
)

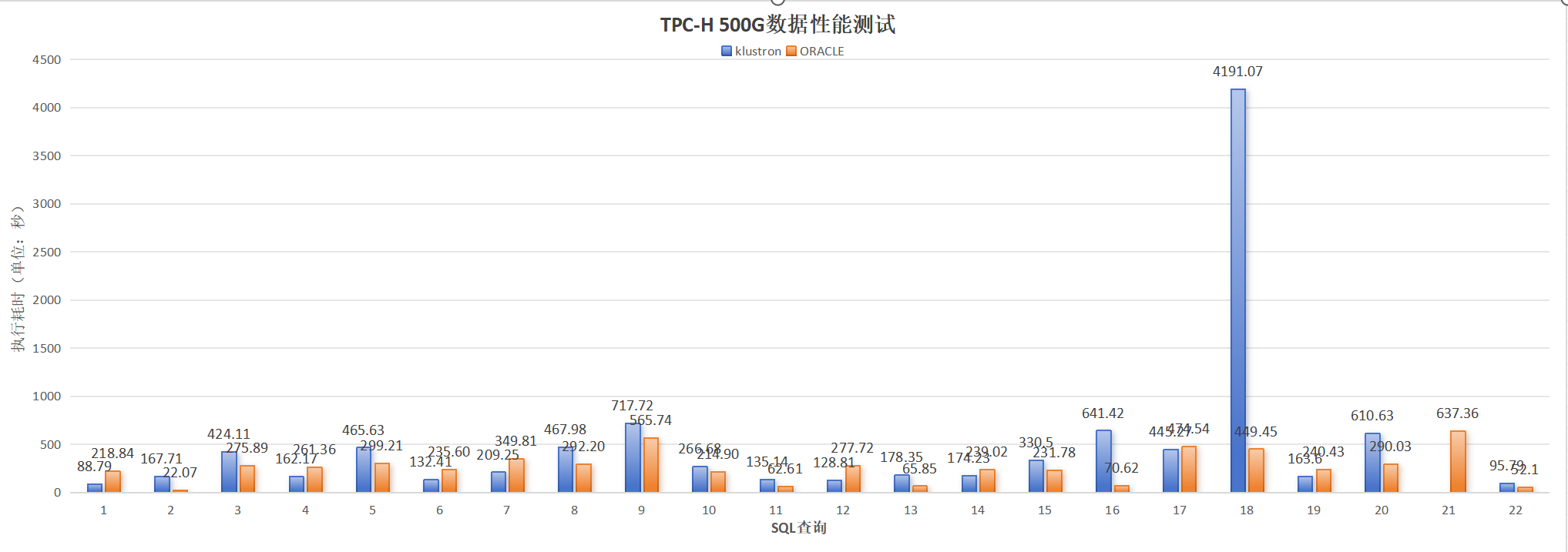

TPC-H-500G
TPC-H 数据量500G，测试结果均为测试两次择优耗时较短的一次，单位：秒。
| QUERY ID | Klustron v1.4.1 | Oracle v19.14.0.0.0 |
|---|---|---|
| Q1 | 88.79 | 218.84 |
| Q2 | 167.71 | 22.07 |
| Q3 | 424.11 | 275.89 |
| Q4 | 162.17 | 261.36 |
| Q5 | 465.63 | 299.21 |
| Q6 | 132.41 | 235.60 |
| Q7 | 209.25 | 349.81 |
| Q8 | 467.98 | 292.20 |
| Q9 | 717.72 | 565.74 |
| Q10 | 266.68 | 214.90 |
| Q11 | 135.14 | 62.61 |
| Q12 | 128.81 | 277.72 |
| Q13 | 178.35 | 65.85 |
| Q14 | 174.23 | 239.02 |
| Q15 | 330.5 | 231.78 |
| Q16 | 641.42 | 70.62 |
| Q17 | 445.27 | 474.54 |
| Q18 | 4191.07 | 449.45 |
| Q19 | 163.6 | 240.43 |
| Q20 | 610.63 | 290.03 |
| Q21 | 637.36 | |
| Q22 | 95.79 | 52.1 |
| 总耗时 | 10197.26 | 5827.13 |
)
建表语句
Klustron
create TABLEGROUP tpch10 partitions 3 (
partition tpch10_auto_p0 with(hash=0,shard=1),
partition tpch10_auto_p1 with(hash=1,shard=2),
partition tpch10_auto_p2 with(hash=2,shard=3)
);
CREATE TABLE NATION ( N_NATIONKEY INTEGER NOT NULL,
N_NAME CHAR(25) NOT NULL,
N_REGIONKEY INTEGER NOT NULL,
N_COMMENT VARCHAR(152),
PRIMARY KEY (n_nationkey)) WITH(SHARD=all);
CREATE TABLE REGION ( R_REGIONKEY INTEGER NOT NULL,
R_NAME CHAR(25) NOT NULL,
R_COMMENT VARCHAR(152),
PRIMARY KEY (r_regionkey)) WITH (SHARD=all);
CREATE TABLE PART ( P_PARTKEY INTEGER NOT NULL,
P_NAME VARCHAR(55) NOT NULL,
P_MFGR CHAR(25) NOT NULL,
P_BRAND CHAR(10) NOT NULL,
P_TYPE VARCHAR(25) NOT NULL,
P_SIZE INTEGER NOT NULL,
P_CONTAINER CHAR(10) NOT NULL,
P_RETAILPRICE double NOT NULL,
P_COMMENT VARCHAR(23) NOT NULL,
PRIMARY KEY (p_partkey)) PARTITION BY HASH (p_partkey) partitions 3 TABLEGROUP tpch10;
CREATE TABLE SUPPLIER ( S_SUPPKEY INTEGER NOT NULL,
S_NAME CHAR(25) NOT NULL,
S_ADDRESS VARCHAR(40) NOT NULL,
S_NATIONKEY INTEGER NOT NULL,
S_PHONE CHAR(15) NOT NULL,
S_ACCTBAL double NOT NULL,
S_COMMENT VARCHAR(101) NOT NULL,
PRIMARY KEY (s_suppkey)) PARTITION BY HASH (s_suppkey) partitions 3 TABLEGROUP tpch10;
CREATE TABLE PARTSUPP ( PS_PARTKEY INTEGER NOT NULL,
PS_SUPPKEY INTEGER NOT NULL,
PS_AVAILQTY INTEGER NOT NULL,
PS_SUPPLYCOST double NOT NULL,
PS_COMMENT VARCHAR(199) NOT NULL,
PRIMARY KEY (ps_partkey, ps_suppkey)) PARTITION BY HASH (ps_partkey) partitions 3 TABLEGROUP tpch10;
CREATE TABLE CUSTOMER ( C_CUSTKEY INTEGER NOT NULL,
C_NAME VARCHAR(25) NOT NULL,
C_ADDRESS VARCHAR(40) NOT NULL,
C_NATIONKEY INTEGER NOT NULL,
C_PHONE CHAR(15) NOT NULL,
C_ACCTBAL double NOT NULL,
C_MKTSEGMENT CHAR(10) NOT NULL,
C_COMMENT VARCHAR(117) NOT NULL,
PRIMARY KEY(c_custkey)) PARTITION BY HASH (C_CUSTKEY) partitions 3 TABLEGROUP tpch10;
CREATE TABLE ORDERS ( O_ORDERKEY INTEGER NOT NULL,
O_CUSTKEY INTEGER NOT NULL,
O_ORDERSTATUS CHAR(1) NOT NULL,
O_TOTALPRICE double NOT NULL,
O_ORDERDATE DATE NOT NULL,
O_ORDERPRIORITY CHAR(15) NOT NULL,
O_CLERK CHAR(15) NOT NULL,
O_SHIPPRIORITY INTEGER NOT NULL,
O_COMMENT VARCHAR(79) NOT NULL,
PRIMARY KEY(o_orderkey)) PARTITION BY HASH (o_orderkey) partitions 3 TABLEGROUP tpch10;
CREATE TABLE LINEITEM ( L_ORDERKEY INTEGER NOT NULL,
L_PARTKEY INTEGER NOT NULL,
L_SUPPKEY INTEGER NOT NULL,
L_LINENUMBER INTEGER NOT NULL,
L_QUANTITY double NOT NULL,
L_EXTENDEDPRICE double NOT NULL,
L_DISCOUNT double NOT NULL,
L_TAX double NOT NULL,
L_RETURNFLAG CHAR(1) NOT NULL,
L_LINESTATUS CHAR(1) NOT NULL,
L_SHIPDATE DATE NOT NULL,
L_COMMITDATE DATE NOT NULL,
L_RECEIPTDATE DATE NOT NULL,
L_SHIPINSTRUCT CHAR(25) NOT NULL,
L_SHIPMODE CHAR(10) NOT NULL,
L_COMMENT VARCHAR(44) NOT NULL,
PRIMARY KEY(l_orderkey, l_linenumber)) PARTITION BY HASH (l_orderkey) partitions 3 TABLEGROUP tpch10;
Oracle
CREATE TABLE NATION ( N_NATIONKEY number NOT NULL,
N_NAME CHAR(25) NOT NULL,
N_REGIONKEY number NOT NULL,
N_COMMENT VARCHAR2(152),
PRIMARY KEY (n_nationkey));
CREATE TABLE REGION ( R_REGIONKEY number NOT NULL,
R_NAME CHAR(25) NOT NULL,
R_COMMENT VARCHAR2(152),
PRIMARY KEY (r_regionkey));
CREATE TABLE PART ( P_PARTKEY number NOT NULL,
P_NAME VARCHAR2(55) NOT NULL,
P_MFGR CHAR(25) NOT NULL,
P_BRAND CHAR(10) NOT NULL,
P_TYPE VARCHAR2(25) NOT NULL,
P_SIZE number NOT NULL,
P_CONTAINER CHAR(10) NOT NULL,
P_RETAILPRICE binary_double NOT NULL,
P_COMMENT VARCHAR2(23) NOT NULL,
PRIMARY KEY (p_partkey)) PARTITION BY HASH (p_partkey) partitions 3;
CREATE TABLE SUPPLIER ( S_SUPPKEY number NOT NULL,
S_NAME CHAR(25) NOT NULL,
S_ADDRESS VARCHAR2(40) NOT NULL,
S_NATIONKEY number NOT NULL,
S_PHONE CHAR(15) NOT NULL,
S_ACCTBAL binary_double NOT NULL,
S_COMMENT VARCHAR2(101) NOT NULL,
PRIMARY KEY (s_suppkey)) PARTITION BY HASH (s_suppkey) partitions 3;
CREATE TABLE PARTSUPP ( PS_PARTKEY number NOT NULL,
PS_SUPPKEY number NOT NULL,
PS_AVAILQTY number NOT NULL,
PS_SUPPLYCOST binary_double NOT NULL,
PS_COMMENT VARCHAR2(199) NOT NULL,
PRIMARY KEY (ps_partkey, ps_suppkey)) PARTITION BY HASH (ps_partkey) partitions 3;
CREATE TABLE CUSTOMER ( C_CUSTKEY number NOT NULL,
C_NAME VARCHAR2(25) NOT NULL,
C_ADDRESS VARCHAR2(40) NOT NULL,
C_NATIONKEY number NOT NULL,
C_PHONE CHAR(15) NOT NULL,
C_ACCTBAL binary_double NOT NULL,
C_MKTSEGMENT CHAR(10) NOT NULL,
C_COMMENT VARCHAR2(117) NOT NULL,
PRIMARY KEY(c_custkey)) PARTITION BY HASH (C_CUSTKEY) partitions 3;
CREATE TABLE ORDERS ( O_ORDERKEY number NOT NULL,
O_CUSTKEY number NOT NULL,
O_ORDERSTATUS CHAR(1) NOT NULL,
O_TOTALPRICE binary_double NOT NULL,
O_ORDERDATE DATE NOT NULL,
O_ORDERPRIORITY CHAR(15) NOT NULL,
O_CLERK CHAR(15) NOT NULL,
O_SHIPPRIORITY number NOT NULL,
O_COMMENT VARCHAR2(79) NOT NULL,
PRIMARY KEY(o_orderkey)) PARTITION BY HASH (o_orderkey) partitions 3;
CREATE TABLE LINEITEM ( L_ORDERKEY number NOT NULL,
L_PARTKEY number NOT NULL,
L_SUPPKEY number NOT NULL,
L_LINENUMBER number NOT NULL,
L_QUANTITY binary_double NOT NULL,
L_EXTENDEDPRICE binary_double NOT NULL,
L_DISCOUNT binary_double NOT NULL,
L_TAX binary_double NOT NULL,
L_RETURNFLAG CHAR(1) NOT NULL,
L_LINESTATUS CHAR(1) NOT NULL,
L_SHIPDATE DATE NOT NULL,
L_COMMITDATE DATE NOT NULL,
L_RECEIPTDATE DATE NOT NULL,
L_SHIPINSTRUCT CHAR(25) NOT NULL,
L_SHIPMODE CHAR(10) NOT NULL,
L_COMMENT VARCHAR2(44) NOT NULL,
PRIMARY KEY(l_orderkey, l_linenumber)) PARTITION BY HASH (l_orderkey) partitions 3;
收集统计信息
Klustron
Klustron采用如下语句收集统计信息：
Klustron执行的语句：
analyze nation;
analyze region;
analyze part;
analyze supplier;
analyze partsupp;
analyze customer;
analyze orders;
analyze lineitem;
analyze lineitem(l_shipmode,l_receiptdate,l_returnflag,l_linestatus,l_orderkey,l_suppkey,l_discount,l_quantity,l_partkey);
analyze supplier(s_suppkey,s_nationkey);
analyze part(p_size,p_type,p_partkey);
analyze partsupp(ps_suppkey,ps_supplycost);
analyze nation(n_regionkey,n_nationkey,n_name);
analyze region(r_name,r_regionkey);
analyze customer(c_mktsegment,c_custkey,c_nationkey,c_name);
analyze orders(o_custkey,o_orderkey,o_orderdate,o_orderpriority,o_totalprice);
Oracle
EXEC DBMS_STATS.GATHER_TABLE_STATS('ASHAN','REGION',estimate_percent=>100,method_opt=>'FOR ALL COLUMNS SIZE AUTO',degree=>16,cascade=>TRUE);
EXEC DBMS_STATS.GATHER_TABLE_STATS('ASHAN','NATION',estimate_percent=>100,method_opt=>'FOR ALL COLUMNS SIZE AUTO',degree=>16,cascade=>TRUE);
EXEC DBMS_STATS.GATHER_TABLE_STATS('ASHAN','LINEITEM',estimate_percent=>30,method_opt=>'FOR ALL COLUMNS SIZE AUTO',degree=>16,cascade=>TRUE);
EXEC DBMS_STATS.GATHER_TABLE_STATS('ASHAN','CUSTOMER',estimate_percent=>50,method_opt=>'FOR ALL COLUMNS SIZE AUTO',degree=>16,cascade=>TRUE);
EXEC DBMS_STATS.GATHER_TABLE_STATS('ASHAN','PART',estimate_percent=>50,method_opt=>'FOR ALL COLUMNS SIZE AUTO',degree=>16,cascade=>TRUE);
EXEC DBMS_STATS.GATHER_TABLE_STATS('ASHAN','PARTSUPP',estimate_percent=>30,method_opt=>'FOR ALL COLUMNS SIZE AUTO',degree=>16,cascade=>TRUE);
EXEC DBMS_STATS.GATHER_TABLE_STATS('ASHAN','ORDERS',estimate_percent=>30,method_opt=>'FOR ALL COLUMNS SIZE AUTO',degree=>16,cascade=>TRUE);
EXEC DBMS_STATS.GATHER_TABLE_STATS('ASHAN','SUPPLIER',estimate_percent=>100,method_opt=>'FOR ALL COLUMNS SIZE AUTO',degree=>16,cascade=>TRUE);
查询语句
Klustron
#Q1:
select
l_returnflag,
l_linestatus,
sum(l_quantity) as sum_qty,
sum(l_extendedprice) as sum_base_price,
sum(l_extendedprice * (1 - l_discount)) as sum_disc_price,
sum(l_extendedprice * (1 - l_discount) * (1 + l_tax)) as sum_charge,
avg(l_quantity) as avg_qty,
avg(l_extendedprice) as avg_price,
avg(l_discount) as avg_disc,
count(*) as count_order
from
lineitem
where
l_shipdate <= date '1998-12-01' - interval '91' day
group by
l_returnflag,
l_linestatus
order by
l_returnflag,
l_linestatus
LIMIT 1;
#Q2:
select
s_acctbal,
s_name,
n_name,
p_partkey,
p_mfgr,
s_address,
s_phone,
s_comment
from
part,
supplier,
partsupp,
nation,
region
where
p_partkey = ps_partkey
and s_suppkey = ps_suppkey
and p_size = 6
and p_type like '%BRASS'
and s_nationkey = n_nationkey
and n_regionkey = r_regionkey
and r_name = 'ASIA'
and ps_supplycost = (
select
min(ps_supplycost)
from
partsupp,
supplier,
nation,
region
where
p_partkey = ps_partkey
and s_suppkey = ps_suppkey
and s_nationkey = n_nationkey
and n_regionkey = r_regionkey
and r_name = 'ASIA'
)
order by
s_acctbal desc,
n_name,
s_name,
p_partkey
LIMIT 100;
#Q3:
select
l_orderkey,
sum(l_extendedprice * (1 - l_discount)) as revenue,
o_orderdate,
o_shippriority
from
customer,
orders,
lineitem
where
c_mktsegment = 'BUILDING'
and c_custkey = o_custkey
and l_orderkey = o_orderkey
and o_orderdate < date '1995-03-17'
and l_shipdate > date '1995-03-17'
group by
l_orderkey,
o_orderdate,
o_shippriority
order by
revenue desc,
o_orderdate
LIMIT 10;
#Q4:
select
o_orderpriority,
count(*) as order_count
from
orders
where
o_orderdate >= date '1995-07-01'
and o_orderdate < date '1995-07-01' + interval '3' month
and exists (
select
*
from
lineitem
where
l_orderkey = o_orderkey
and l_commitdate < l_receiptdate
)
group by
o_orderpriority
order by
o_orderpriority
LIMIT 1;
#Q5:
select
n_name,
sum(l_extendedprice * (1 - l_discount)) as revenue
from
customer,
orders,
lineitem,
supplier,
nation,
region
where
c_custkey = o_custkey
and l_orderkey = o_orderkey
and l_suppkey = s_suppkey
and c_nationkey = s_nationkey
and s_nationkey = n_nationkey
and n_regionkey = r_regionkey
and r_name = 'AFRICA'
and o_orderdate >= date '1997-01-01'
and o_orderdate < date '1997-01-01' + interval '1' year
group by
n_name
order by
revenue desc
LIMIT 1;
#Q6:
select
sum(l_extendedprice * l_discount) as revenue
from
lineitem
where
l_shipdate >= date '1997-01-01'
and l_shipdate < date '1997-01-01' + interval '1' year
and l_discount between 0.05 - 0.01 and 0.05 + 0.01
and l_quantity < 25
LIMIT 1;
#Q7:
select
supp_nation,
cust_nation,
l_year,
sum(volume) as revenue
from
(
select
n1.n_name as supp_nation,
n2.n_name as cust_nation,
extract(year from l_shipdate) as l_year,
l_extendedprice * (1 - l_discount) as volume
from
supplier,
lineitem,
orders,
customer,
nation n1,
nation n2
where
s_suppkey = l_suppkey
and o_orderkey = l_orderkey
and c_custkey = o_custkey
and s_nationkey = n1.n_nationkey
and c_nationkey = n2.n_nationkey
and (
(n1.n_name = 'IRAN' and n2.n_name = 'PERU')
or (n1.n_name = 'PERU' and n2.n_name = 'IRAN')
)
and l_shipdate between date '1995-01-01' and date '1996-12-31'
) as shipping
group by
supp_nation,
cust_nation,
l_year
order by
supp_nation,
cust_nation,
l_year
LIMIT 1;
#Q8:
select
o_year,
sum(case
when nation = 'PERU' then volume
else 0
end) / sum(volume) as mkt_share
from
(
select
extract(year from o_orderdate) as o_year,
l_extendedprice * (1 - l_discount) as volume,
n2.n_name as nation
from
part,
supplier,
lineitem,
orders,
customer,
nation n1,
nation n2,
region
where
p_partkey = l_partkey
and s_suppkey = l_suppkey
and l_orderkey = o_orderkey
and o_custkey = c_custkey
and c_nationkey = n1.n_nationkey
and n1.n_regionkey = r_regionkey
and r_name = 'AMERICA'
and s_nationkey = n2.n_nationkey
and o_orderdate between date '1995-01-01' and date '1996-12-31'
and p_type = 'ECONOMY ANODIZED COPPER'
) as all_nations
group by
o_year
order by
o_year
LIMIT 1;
#Q9:
select
nation,
o_year,
sum(amount) as sum_profit
from
(
select
n_name as nation,
extract(year from o_orderdate) as o_year,
l_extendedprice * (1 - l_discount) - ps_supplycost * l_quantity as amount
from
part,
supplier,
lineitem,
partsupp,
orders,
nation
where
s_suppkey = l_suppkey
and ps_suppkey = l_suppkey
and ps_partkey = l_partkey
and p_partkey = l_partkey
and o_orderkey = l_orderkey
and s_nationkey = n_nationkey
and p_name like '%pink%'
) as profit
group by
nation,
o_year
order by
nation,
o_year desc
LIMIT 1;
#Q10:
select
c_custkey,
c_name,
sum(l_extendedprice * (1 - l_discount)) as revenue,
c_acctbal,
n_name,
c_address,
c_phone,
c_comment
from
customer,
orders,
lineitem,
nation
where
c_custkey = o_custkey
and l_orderkey = o_orderkey
and o_orderdate >= date '1993-05-01'
and o_orderdate < date '1993-05-01' + interval '3' month
and l_returnflag = 'R'
and c_nationkey = n_nationkey
group by
c_custkey,
c_name,
c_acctbal,
c_phone,
n_name,
c_address,
c_comment
order by
revenue desc
LIMIT 20;
#Q11:
select
ps_partkey,
sum(ps_supplycost * ps_availqty) as value
from
partsupp,
supplier,
nation
where
ps_suppkey = s_suppkey
and s_nationkey = n_nationkey
and n_name = 'MOZAMBIQUE'
group by
ps_partkey having
sum(ps_supplycost * ps_availqty) > (
select
sum(ps_supplycost * ps_availqty) * 0.0001000000
from
partsupp,
supplier,
nation
where
ps_suppkey = s_suppkey
and s_nationkey = n_nationkey
and n_name = 'MOZAMBIQUE'
)
order by
value desc
LIMIT 1;
#Q12:
select
l_shipmode,
sum(case
when o_orderpriority = '1-URGENT'
or o_orderpriority = '2-HIGH'
then 1
else 0
end) as high_line_count,
sum(case
when o_orderpriority <> '1-URGENT'
and o_orderpriority <> '2-HIGH'
then 1
else 0
end) as low_line_count
from
orders,
lineitem
where
o_orderkey = l_orderkey
and (l_shipmode = 'MAIL' or l_shipmode = 'FOB')
and l_commitdate < l_receiptdate
and l_shipdate < l_commitdate
and l_receiptdate >= date '1994-01-01'
and l_receiptdate < date '1994-01-01' + interval '1' year
group by
l_shipmode
order by
l_shipmode
LIMIT 1;
#Q13:
select
c_count,
count(*) as custdist
from
(
select
c_custkey,
count(o_orderkey)
from
customer left outer join orders on
c_custkey = o_custkey
and o_comment not like '%special%requests%'
group by
c_custkey
) as c_orders (c_custkey, c_count)
group by
c_count
order by
custdist desc,
c_count desc
LIMIT 1;
#Q14:
select
100.00 * sum(case
when p_type like 'PROMO%'
then l_extendedprice * (1 - l_discount)
else 0
end) / sum(l_extendedprice * (1 - l_discount)) as promo_revenue
from
lineitem,
part
where
l_partkey = p_partkey
and l_shipdate >= date '1994-10-01'
and l_shipdate < date '1994-10-01' + interval '1' month
LIMIT 1;
#Q15:
create view revenue0 (supplier_no, total_revenue) as
select
l_suppkey,
sum(l_extendedprice * (1 - l_discount))
from
lineitem
where
l_shipdate >= date '1994-04-01'
and l_shipdate < date '1994-04-01' + interval '3' month
group by
l_suppkey;
select
s_suppkey,
s_name,
s_address,
s_phone,
total_revenue
from
supplier,
revenue0
where
s_suppkey = supplier_no
and total_revenue = (
select
max(total_revenue)
from
revenue0
)
order by
s_suppkey
LIMIT 1;
drop view revenue0;
#Q16:
select
p_brand,
p_type,
p_size,
count(distinct ps_suppkey) as supplier_cnt
from
partsupp,
part
where
p_partkey = ps_partkey
and p_brand <> 'Brand#11'
and p_type not like 'STANDARD BRUSHED%'
and p_size in (9, 21, 24, 30, 36, 50, 27, 39)
and ps_suppkey not in (
select
s_suppkey
from
supplier
where
s_comment like '%Customer%Complaints%'
)
group by
p_brand,
p_type,
p_size
order by
supplier_cnt desc,
p_brand,
p_type,
p_size
LIMIT 1;
#Q17:
select
sum(l_extendedprice) / 7.0 as avg_yearly
from
lineitem,
part,
(SELECT l_partkey AS agg_partkey, 0.2 * avg(l_quantity) AS avg_quantity FROM lineitem GROUP BY l_partkey) part_agg
where
p_partkey = l_partkey
and agg_partkey = l_partkey
and p_brand = 'Brand#11'
and p_container = 'SM CAN'
and l_quantity < avg_quantity
LIMIT 1;
#Q18:
select
c_name,
c_custkey,
o_orderkey,
o_orderdate,
o_totalprice,
sum(l_quantity)
from
customer,
orders,
lineitem
where
o_orderkey in (
select
l_orderkey
from
lineitem
group by
l_orderkey having
sum(l_quantity) > 312
)
and c_custkey = o_custkey
and o_orderkey = l_orderkey
group by
c_name,
c_custkey,
o_orderkey,
o_orderdate,
o_totalprice
order by
o_totalprice desc,
o_orderdate
LIMIT 100;
#Q19:
select
sum(l_extendedprice* (1 - l_discount)) as revenue
from
lineitem,
part
where
(
p_partkey = l_partkey
and p_brand = 'Brand#12'
and p_container in ('SM CASE', 'SM BOX', 'SM PACK', 'SM PKG')
and l_quantity >= 5 and l_quantity <= 5 + 10
and p_size between 1 and 5
and l_shipmode in ('AIR', 'AIR REG')
and l_shipinstruct = 'DELIVER IN PERSON'
)
or
(
p_partkey = l_partkey
and p_brand = 'Brand#33'
and p_container in ('MED BAG', 'MED BOX', 'MED PKG', 'MED PACK')
and l_quantity >= 18 and l_quantity <= 18 + 10
and p_size between 1 and 10
and l_shipmode in ('AIR', 'AIR REG')
and l_shipinstruct = 'DELIVER IN PERSON'
)
or
(
p_partkey = l_partkey
and p_brand = 'Brand#45'
and p_container in ('LG CASE', 'LG BOX', 'LG PACK', 'LG PKG')
and l_quantity >= 20 and l_quantity <= 20 + 10
and p_size between 1 and 15
and l_shipmode in ('AIR', 'AIR REG')
and l_shipinstruct = 'DELIVER IN PERSON'
)
LIMIT 1;
#Q20:
select
s_name,
s_address
from
supplier,
nation
where
s_suppkey in (
select
ps_suppkey
from
partsupp,
(
select
l_partkey agg_partkey,
l_suppkey agg_suppkey,
0.5 * sum(l_quantity) AS agg_quantity
from
lineitem
where
l_shipdate >= date '1995-01-01'
and l_shipdate < date '1995-01-01' + interval '1' year
group by
l_partkey,
l_suppkey
) agg_lineitem
where
agg_partkey = ps_partkey
and agg_suppkey = ps_suppkey
and ps_partkey in (
select
p_partkey
from
part
where
p_name like 'hot%'
)
and ps_availqty > agg_quantity
)
and s_nationkey = n_nationkey
and n_name = 'KENYA'
order by
s_name
LIMIT 1;
#Q21:
select
s_name,
count(*) as numwait
from
supplier,
lineitem l1,
orders,
nation
where
s_suppkey = l1.l_suppkey
and o_orderkey = l1.l_orderkey
and o_orderstatus = 'F'
and l1.l_receiptdate > l1.l_commitdate
and exists (
select
*
from
lineitem l2
where
l2.l_orderkey = l1.l_orderkey
and l2.l_suppkey <> l1.l_suppkey
)
and not exists (
select
*
from
lineitem l3
where
l3.l_orderkey = l1.l_orderkey
and l3.l_suppkey <> l1.l_suppkey
and l3.l_receiptdate > l3.l_commitdate
)
and s_nationkey = n_nationkey
and n_name = 'IRAQ'
group by
s_name
order by
numwait desc,
s_name
LIMIT 100;
#Q22:
select
cntrycode,
count(*) as numcust,
sum(c_acctbal) as totacctbal
from
(
select
substring(c_phone from 1 for 2) as cntrycode,
c_acctbal
from
customer
where
substring(c_phone from 1 for 2) in
('24', '27', '34', '23', '29', '15', '13')
and c_acctbal > (
select
avg(c_acctbal)
from
customer
where
c_acctbal > 0.00
and substring(c_phone from 1 for 2) in
('24', '27', '34', '23', '29', '15', '13')
)
and not exists (
select
*
from
orders
where
o_custkey = c_custkey
)
) as custsale
group by
cntrycode
order by
cntrycode
LIMIT 1;
Oracle
#Q1:
select
l_returnflag,
l_linestatus,
sum(l_quantity) as sum_qty,
sum(l_extendedprice) as sum_base_price,
sum(l_extendedprice * (1 - l_discount)) as sum_disc_price,
sum(l_extendedprice * (1 - l_discount) * (1 + l_tax)) as sum_charge,
avg(l_quantity) as avg_qty,
avg(l_extendedprice) as avg_price,
avg(l_discount) as avg_disc,
count(*) as count_order
from
lineitem
where
l_shipdate <= date '1998-12-01' - interval '91' day
group by
l_returnflag,
l_linestatus
order by
l_returnflag,
l_linestatus
offset 0 rows fetch next 1 rows only;
#Q2:
select
s_acctbal,
s_name,
n_name,
p_partkey,
p_mfgr,
s_address,
s_phone,
s_comment
from
part,
supplier,
partsupp,
nation,
region
where
p_partkey = ps_partkey
and s_suppkey = ps_suppkey
and p_size = 6
and p_type like '%BRASS'
and s_nationkey = n_nationkey
and n_regionkey = r_regionkey
and r_name = 'ASIA'
and ps_supplycost = (
select
min(ps_supplycost)
from
partsupp,
supplier,
nation,
region
where
p_partkey = ps_partkey
and s_suppkey = ps_suppkey
and s_nationkey = n_nationkey
and n_regionkey = r_regionkey
and r_name = 'ASIA'
)
order by
s_acctbal desc,
n_name,
s_name,
p_partkey
offset 0 rows fetch next 100 rows only;
#Q3:
select
l_orderkey,
sum(l_extendedprice * (1 - l_discount)) as revenue,
o_orderdate,
o_shippriority
from
customer,
orders,
lineitem
where
c_mktsegment = 'BUILDING'
and c_custkey = o_custkey
and l_orderkey = o_orderkey
and o_orderdate < date '1995-03-17'
and l_shipdate > date '1995-03-17'
group by
l_orderkey,
o_orderdate,
o_shippriority
order by
revenue desc,
o_orderdate
offset 0 rows fetch next 10 rows only;
#Q4:
select
o_orderpriority,
count(*) as order_count
from
orders
where
o_orderdate >= date '1995-07-01'
and o_orderdate < date '1995-07-01' + interval '3' month
and exists (
select
*
from
lineitem
where
l_orderkey = o_orderkey
and l_commitdate < l_receiptdate
)
group by
o_orderpriority
order by
o_orderpriority
offset 0 rows fetch next 1 rows only;
#Q5:
select
n_name,
sum(l_extendedprice * (1 - l_discount)) as revenue
from
customer,
orders,
lineitem,
supplier,
nation,
region
where
c_custkey = o_custkey
and l_orderkey = o_orderkey
and l_suppkey = s_suppkey
and c_nationkey = s_nationkey
and s_nationkey = n_nationkey
and n_regionkey = r_regionkey
and r_name = 'AFRICA'
and o_orderdate >= date '1997-01-01'
and o_orderdate < date '1997-01-01' + interval '1' year
group by
n_name
order by
revenue desc
offset 0 rows fetch next 1 rows only;
#Q6:
select
sum(l_extendedprice * l_discount) as revenue
from
lineitem
where
l_shipdate >= date '1997-01-01'
and l_shipdate < date '1997-01-01' + interval '1' year
and l_discount between 0.05 - 0.01 and 0.05 + 0.01
and l_quantity < 25
offset 0 rows fetch next 1 rows only;
#Q7:
select
supp_nation,
cust_nation,
l_year,
sum(volume) as revenue
from
(
select
n1.n_name as supp_nation,
n2.n_name as cust_nation,
extract(year from l_shipdate) as l_year,
l_extendedprice * (1 - l_discount) as volume
from
supplier,
lineitem,
orders,
customer,
nation n1,
nation n2
where
s_suppkey = l_suppkey
and o_orderkey = l_orderkey
and c_custkey = o_custkey
and s_nationkey = n1.n_nationkey
and c_nationkey = n2.n_nationkey
and (
(n1.n_name = 'IRAN' and n2.n_name = 'PERU')
or (n1.n_name = 'PERU' and n2.n_name = 'IRAN')
)
and l_shipdate between date '1995-01-01' and date '1996-12-31'
) shipping
group by
supp_nation,
cust_nation,
l_year
order by
supp_nation,
cust_nation,
l_year
offset 0 rows fetch next 1 rows only;
#Q8:
select
o_year,
sum(case
when nation = 'PERU' then volume
else 0
end) / sum(volume) as mkt_share
from
(
select
extract(year from o_orderdate) as o_year,
l_extendedprice * (1 - l_discount) as volume,
n2.n_name as nation
from
part,
supplier,
lineitem,
orders,
customer,
nation n1,
nation n2,
region
where
p_partkey = l_partkey
and s_suppkey = l_suppkey
and l_orderkey = o_orderkey
and o_custkey = c_custkey
and c_nationkey = n1.n_nationkey
and n1.n_regionkey = r_regionkey
and r_name = 'AMERICA'
and s_nationkey = n2.n_nationkey
and o_orderdate between date '1995-01-01' and date '1996-12-31'
and p_type = 'ECONOMY ANODIZED COPPER'
) all_nations
group by
o_year
order by
o_year
offset 0 rows fetch next 1 rows only;
#Q9:
select
nation,
o_year,
sum(amount) as sum_profit
from
(
select
n_name as nation,
extract(year from o_orderdate) as o_year,
l_extendedprice * (1 - l_discount) - ps_supplycost * l_quantity as amount
from
part,
supplier,
lineitem,
partsupp,
orders,
nation
where
s_suppkey = l_suppkey
and ps_suppkey = l_suppkey
and ps_partkey = l_partkey
and p_partkey = l_partkey
and o_orderkey = l_orderkey
and s_nationkey = n_nationkey
and p_name like '%pink%'
) profit
group by
nation,
o_year
order by
nation,
o_year desc
offset 0 rows fetch next 1 rows only;
#Q10:
select
c_custkey,
c_name,
sum(l_extendedprice * (1 - l_discount)) as revenue,
c_acctbal,
n_name,
c_address,
c_phone,
c_comment
from
customer,
orders,
lineitem,
nation
where
c_custkey = o_custkey
and l_orderkey = o_orderkey
and o_orderdate >= date '1993-05-01'
and o_orderdate < date '1993-05-01' + interval '3' month
and l_returnflag = 'R'
and c_nationkey = n_nationkey
group by
c_custkey,
c_name,
c_acctbal,
c_phone,
n_name,
c_address,
c_comment
order by
revenue desc
offset 0 rows fetch next 20 rows only;
#Q11:
select
ps_partkey,
sum(ps_supplycost * ps_availqty) as value
from
partsupp,
supplier,
nation
where
ps_suppkey = s_suppkey
and s_nationkey = n_nationkey
and n_name = 'MOZAMBIQUE'
group by
ps_partkey having
sum(ps_supplycost * ps_availqty) > (
select
sum(ps_supplycost * ps_availqty) * 0.0001000000
from
partsupp,
supplier,
nation
where
ps_suppkey = s_suppkey
and s_nationkey = n_nationkey
and n_name = 'MOZAMBIQUE'
)
order by
value desc
offset 0 rows fetch next 1 rows only;
#Q12:
select
l_shipmode,
sum(case
when o_orderpriority = '1-URGENT'
or o_orderpriority = '2-HIGH'
then 1
else 0
end) as high_line_count,
sum(case
when o_orderpriority <> '1-URGENT'
and o_orderpriority <> '2-HIGH'
then 1
else 0
end) as low_line_count
from
orders,
lineitem
where
o_orderkey = l_orderkey
and (l_shipmode = 'MAIL' or l_shipmode = 'FOB')
and l_commitdate < l_receiptdate
and l_shipdate < l_commitdate
and l_receiptdate >= date '1994-01-01'
and l_receiptdate < date '1994-01-01' + interval '1' year
group by
l_shipmode
order by
l_shipmode
offset 0 rows fetch next 1 rows only;
#Q13:
select
c_count,
count(*) as custdist
from
(
select
c_custkey,
count(o_orderkey) as c_count
from
customer left outer join orders on
c_custkey = o_custkey
and o_comment not like '%special%requests%'
group by
c_custkey
) c_orders
group by
c_count
order by
custdist desc,
c_count desc
offset 0 rows fetch next 1 rows only;
#Q14:
select
100.00 * sum(case
when p_type like 'PROMO%'
then l_extendedprice * (1 - l_discount)
else 0
end) / sum(l_extendedprice * (1 - l_discount)) as promo_revenue
from
lineitem,
part
where
l_partkey = p_partkey
and l_shipdate >= date '1994-10-01'
and l_shipdate < date '1994-10-01' + interval '1' month
offset 0 rows fetch next 1 rows only;
#Q15:
create view revenue0 (supplier_no, total_revenue) as
select
l_suppkey,
sum(l_extendedprice * (1 - l_discount))
from
lineitem
where
l_shipdate >= date '1994-04-01'
and l_shipdate < date '1994-04-01' + interval '3' month
group by
l_suppkey;
select
s_suppkey,
s_name,
s_address,
s_phone,
total_revenue
from
supplier,
revenue0
where
s_suppkey = supplier_no
and total_revenue = (
select
max(total_revenue)
from
revenue0
)
order by
s_suppkey
offset 0 rows fetch next 1 rows only;
drop view revenue0;
#Q16:
select
p_brand,
p_type,
p_size,
count(distinct ps_suppkey) as supplier_cnt
from
partsupp,
part
where
p_partkey = ps_partkey
and p_brand <> 'Brand#11'
and p_type not like 'STANDARD BRUSHED%'
and p_size in (9, 21, 24, 30, 36, 50, 27, 39)
and ps_suppkey not in (
select
s_suppkey
from
supplier
where
s_comment like '%Customer%Complaints%'
)
group by
p_brand,
p_type,
p_size
order by
supplier_cnt desc,
p_brand,
p_type,
p_size
offset 0 rows fetch next 1 rows only;
#Q17:
select
sum(l_extendedprice) / 7.0 as avg_yearly
from
lineitem,
part,
(SELECT l_partkey AS agg_partkey, 0.2 * avg(l_quantity) AS avg_quantity FROM lineitem GROUP BY l_partkey) part_agg
where
p_partkey = l_partkey
and agg_partkey = l_partkey
and p_brand = 'Brand#11'
and p_container = 'SM CAN'
and l_quantity < avg_quantity
offset 0 rows fetch next 1 rows only;
#Q18:
select
c_name,
c_custkey,
o_orderkey,
o_orderdate,
o_totalprice,
sum(l_quantity)
from
customer,
orders,
lineitem
where
o_orderkey in (
select
l_orderkey
from
lineitem
group by
l_orderkey having
sum(l_quantity) > 312
)
and c_custkey = o_custkey
and o_orderkey = l_orderkey
group by
c_name,
c_custkey,
o_orderkey,
o_orderdate,
o_totalprice
order by
o_totalprice desc,
o_orderdate
offset 0 rows fetch next 100 rows only;
#Q19:
select
sum(l_extendedprice* (1 - l_discount)) as revenue
from
lineitem,
part
where
(
p_partkey = l_partkey
and p_brand = 'Brand#12'
and p_container in ('SM CASE', 'SM BOX', 'SM PACK', 'SM PKG')
and l_quantity >= 5 and l_quantity <= 5 + 10
and p_size between 1 and 5
and l_shipmode in ('AIR', 'AIR REG')
and l_shipinstruct = 'DELIVER IN PERSON'
)
or
(
p_partkey = l_partkey
and p_brand = 'Brand#33'
and p_container in ('MED BAG', 'MED BOX', 'MED PKG', 'MED PACK')
and l_quantity >= 18 and l_quantity <= 18 + 10
and p_size between 1 and 10
and l_shipmode in ('AIR', 'AIR REG')
and l_shipinstruct = 'DELIVER IN PERSON'
)
or
(
p_partkey = l_partkey
and p_brand = 'Brand#45'
and p_container in ('LG CASE', 'LG BOX', 'LG PACK', 'LG PKG')
and l_quantity >= 20 and l_quantity <= 20 + 10
and p_size between 1 and 15
and l_shipmode in ('AIR', 'AIR REG')
and l_shipinstruct = 'DELIVER IN PERSON'
)
offset 0 rows fetch next 1 rows only;
#Q20:
select
s_name,
s_address
from
supplier,
nation
where
s_suppkey in (
select
ps_suppkey
from
partsupp,
(
select
l_partkey agg_partkey,
l_suppkey agg_suppkey,
0.5 * sum(l_quantity) AS agg_quantity
from
lineitem
where
l_shipdate >= date '1995-01-01'
and l_shipdate < date '1995-01-01' + interval '1' year
group by
l_partkey,
l_suppkey
) agg_lineitem
where
agg_partkey = ps_partkey
and agg_suppkey = ps_suppkey
and ps_partkey in (
select
p_partkey
from
part
where
p_name like 'hot%'
)
and ps_availqty > agg_quantity
)
and s_nationkey = n_nationkey
and n_name = 'KENYA'
order by
s_name
offset 0 rows fetch next 1 rows only;
#Q21:
select
s_name,
count(*) as numwait
from
supplier,
lineitem l1,
orders,
nation
where
s_suppkey = l1.l_suppkey
and o_orderkey = l1.l_orderkey
and o_orderstatus = 'F'
and l1.l_receiptdate > l1.l_commitdate
and exists (
select
*
from
lineitem l2
where
l2.l_orderkey = l1.l_orderkey
and l2.l_suppkey <> l1.l_suppkey
)
and not exists (
select
*
from
lineitem l3
where
l3.l_orderkey = l1.l_orderkey
and l3.l_suppkey <> l1.l_suppkey
and l3.l_receiptdate > l3.l_commitdate
)
and s_nationkey = n_nationkey
and n_name = 'IRAQ'
group by
s_name
order by
numwait desc,
s_name
offset 0 rows fetch next 100 rows only;
#Q22:
select
cntrycode,
count(*) as numcust,
sum(c_acctbal) as totacctbal
from
(select substr(c_phone,1,2) as cntrycode,
c_acctbal
from
customer
where
substr(c_phone,1,2) in
('24', '27', '34', '23', '29', '15', '13')
and c_acctbal > (
select
avg(c_acctbal)
from
customer
where
c_acctbal > 0.00
and substr(c_phone,1,2) in
('24', '27', '34', '23', '29', '15', '13')
)
and not exists (
select
*
from
orders
where
o_custkey = c_custkey)
) custsale
group by
cntrycode
order by
cntrycode
offset 0 rows fetch next 1 rows only;
注意事项
- Oracle导入数据前，需要创建足够多的表空间，以免由于空间不足导入数据失败。
- 以上测试的机器磁盘不是企业级磁盘，避免不了会影响一些的性能结果。
